634-015-274-043 634-015-263-553 634-015-263-543 634-015-263-043 634-015-263-033 D-Sub Connectors

Description : High Density 634 633 Series D-Sub Connectors right angel 634-015-274-043

Stock : In Stock

MOQ : 10pieces

Price : Negotiated

Payment Terms : T/T, Western Union,paypal

Shipping Method : Express

Category : Connectors, Interconnects-electrical terminal block connectors

Product Name : 15 Position D-Sub High Density Receptacle Female Sockets Connector

Connector Type : Receptacle, Signal

Gender : Female

Family : D-Sub Connector

Applications : Mass data storage，High-end and mid-range servers，Telecommunications equipment

Number of Circuits : 15

Pitch : High Density 634 633 Series D-Sub Connectors right angel

More similar part numbers : 634-015-263-553 634-015-263-543 634-015-263-043 634-015-263-033

Contact Now

High Density 634 633 Series D-Sub Connectors right angel 634-015-274-043 15 Position D-Sub High Density Receptacle Female Sockets Connector

Connectors, Interconnects
D-Sub, D-Shaped Connectors
D-Sub Connector Assemblies

Features:

High density three contact rows with 0.350”(8.89mm) footprint, right angle bend
Standard contact spacing and row spacing
Optional 9th pin recessed on 15 contact size in accordance with VESA Display Data Channel standard
Plug and receptacle in 15, 26, 44, 62 or 78 contact sizes
Pin and socket contact mating design with P.C. tail termination
Metal shell provides EMI/RFI shielding, plug shell indents provide grounding and additional mating
retention
Board mounting features include threaded hole, two or four prong boardlock for exceptional
retention to P.C. board
Flange mounting options for panel mount or connector mating include through hole, threaded holes
and threaded standoffs
D-shaped connector mating outline provides polarization

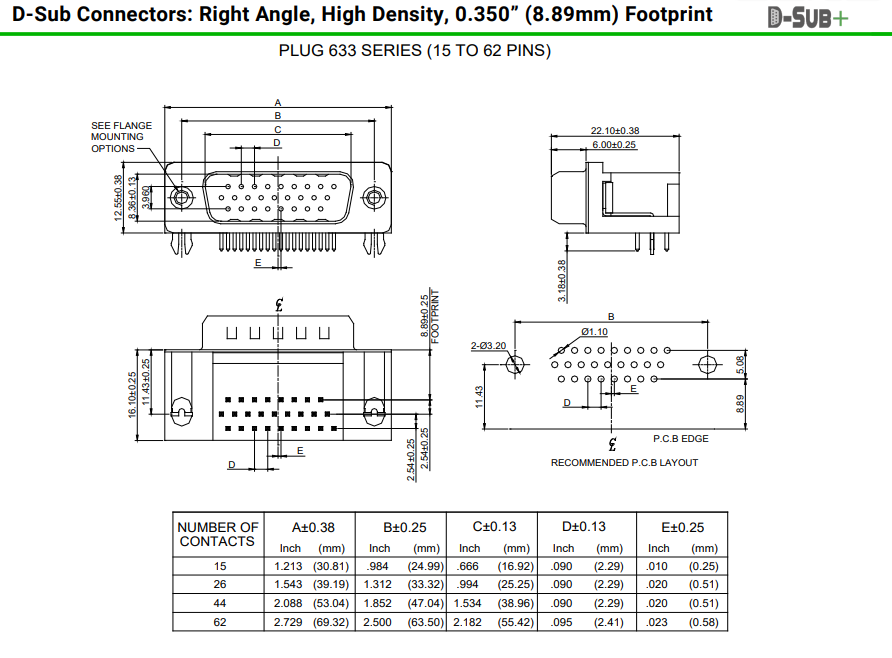

634-015-274-043 Specification:

634-015-274-043 634-015-263-553 634-015-263-543 634-015-263-043 634-015-263-033 D-Sub Connectors

More similar connectors:

Environmental & Export Classifications

ATTRIBUTE	DESCRIPTION
RoHS Status	RoHS Compliant
Moisture Sensitivity Level (MSL)	1 (Unlimited)
ECCN	EAR99
HTSUS	8536.69.4040

634-015-274-043 634-015-263-553 634-015-263-543 634-015-263-043 634-015-263-033 D-Sub Connectors Images
